Pichau A620M Motherboard, DDR5, AM5 Socket, M-ATX

BUY PRODUCT

What's in the Box

Additional Information

What's in the Box

Additional Information

Brand:	Pichau
Model:	PCH-A620M-AM5
Chipset:	A620M
CPU:	AMD Ryzen 9000 / 8000 / 7000 Series (AM5)
Memory:	2× DDR5, 8000+ (OC) MT/s, Non-ECC, Unbuffered
Storage:	1× M.2 + 2× SATA 6Gb/s
Video Outputs:	HDMI 2.1 + DisplayPort 1.2
Network:	10/100/1000 Mb/s
PCIe Slots:	1× PCIe 4.0 x16, 1× PCIe 3.0 x1
Audio:	Realtek ALC897, 7.1-Channel HD Audio
USB:	4× Rear USB Ports + 2 via Internal Header
Internal Connectors:	2x SATA III 1x M.2 E-Key 1x USB 3.2 Gen1 Header 2× USB 2.0 Headers 1× 8-pin CPU 1× 24-pin ATX 1× CPU Fan 1× CPU_OPT 1× System Fan 1× Front Panel 1× Front Audio 1× Speaker 1× Clear CMOS 1× COM 1× TPM
Power:	1× 8-pin CPU + 1× 24-pin ATX
Dimensions:	22.1 x 24.4 cm

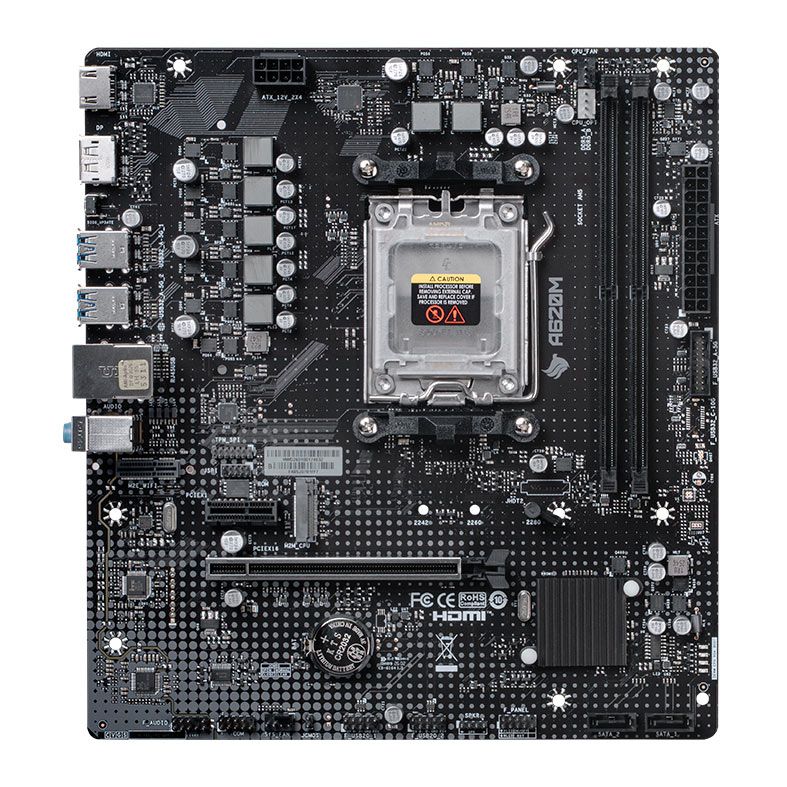

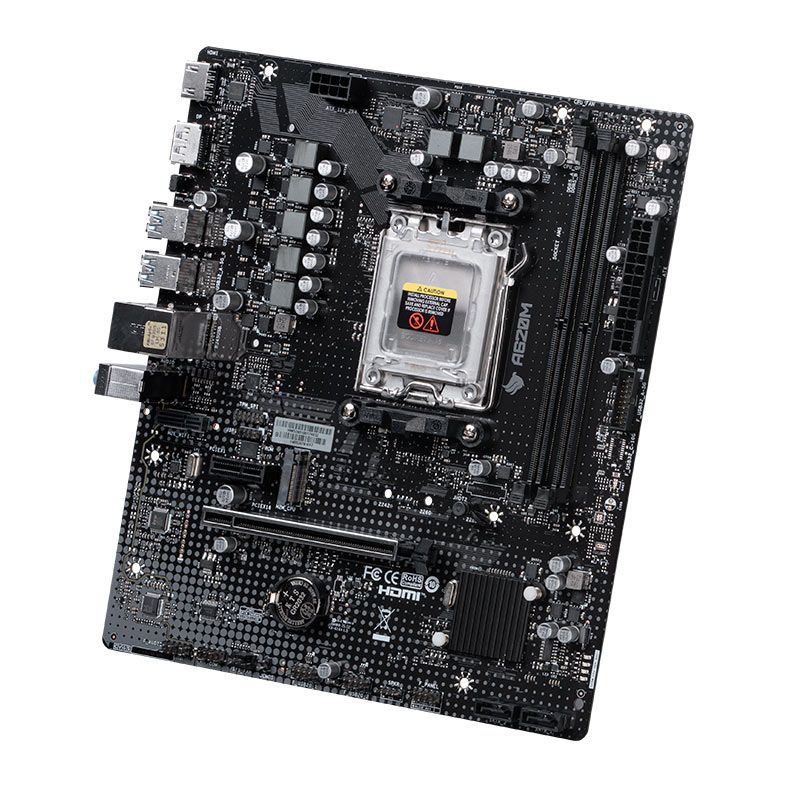

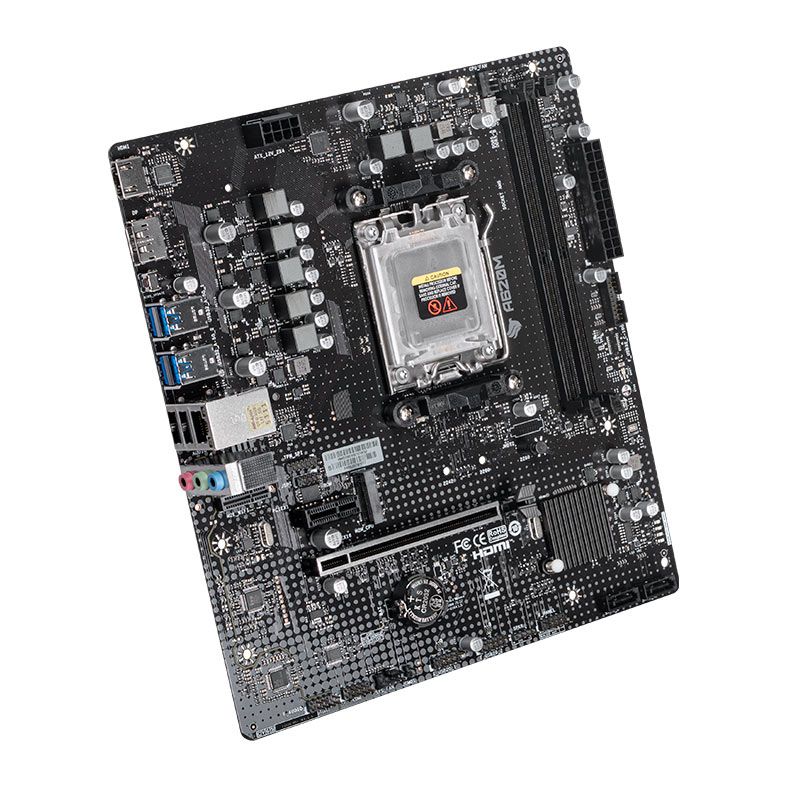

PICHAU A620M MOTHERBOARD

Building a modern setup starts with the right foundation, and the Pichau A620M is ready for the task. With support for the AM5 socket and DDR5 memory, it brings you into the next generation with stability and room to grow, making future upgrades simple and hassle-free.

FORM FACTOR

Compact in size and efficient by design, the A620M features an M-ATX form factor that fits easily into a wide variety of cases, simplifying installation while keeping your setup clean and organized. Perfect for adapting to different build styles and requirements.

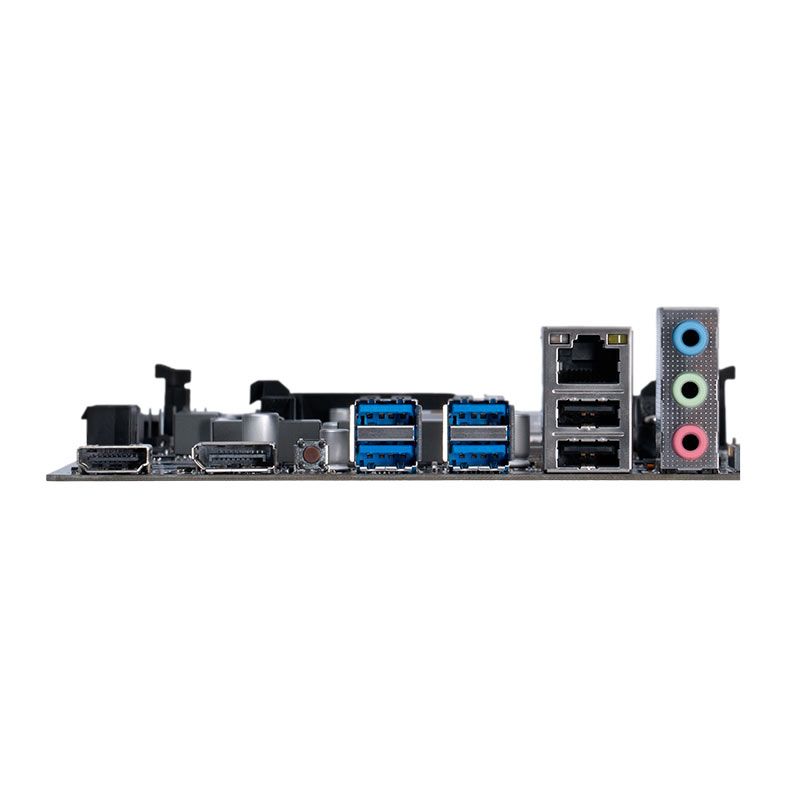

CONNECTIVITY

The Pichau A620M offers versatile connectivity, featuring USB 3.2 and USB 2.0 ports, along with M.2 and SATA storage options to keep your system fast and responsive. It also includes a PCIe 4.0 x16 slot for modern graphics cards, as well as HDMI 2.1 and DisplayPort outputs, expanding your possibilities for multi-monitor setups.

PERFORMANCE

Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors, and supporting high-frequency DDR5 memory with overclocking capabilities, it delivers faster response times and enhanced system performance, making gaming, multitasking, and everyday applications smoother and more efficient.
