Pichau Alphard B760M-T Motherboard, DDR4, LGA 1700, M-ATX, Intel B760 Chipset
Motherboard | SATA Cable | Rear I/O Shield | M.2 Screw | User Manual
| Brand: | Pichau |
|---|---|
| Model: | PCH-ALPB760MDDR4-T |
| CPU: | Processor Socket: LGA 1700 Compatible with 12th, 13th, and 14th Gen Intel Core i3 and i5 Processors |
| Chipset: | B760 |
| Memory: | Memory Type: DDR4 Memory Slots: 2 Maximum Memory Capacity: 64 GB Maximum Memory Speed: 3200 MHz |
| Storage: | SATA 6Gb/s: 4 M.2: 1 M.2 (NVMe Protocol) RAID: RAID Support, RAID 0, 1, 5, 10 |
| LAN: | LAN (Network): 1 Gigabit Realtek Ethernet Wi-Fi: Wi-Fi Support, Wi-Fi 6 |
| Audio Codec: | Audio Chip: ALC897 Chip Audio Channels: 5.1 Channels |
| USB: | USB 3.2 Gen 2: 4 USB 2.0: 4 |
| Expansion Slots: | PCI Express 4.0 x16: 1 PCI Express 3.0 x1: 1 |
| Internal Connectors: | Power Connectors: 1 Standard 8-Pin Power Connector; 1 Standard 24-Pin Power Connector Fan Connectors: 2 (1 4-Pin + 1 3-Pin) RGB Connectors: No |
| Form Factor: | Micro ATX |

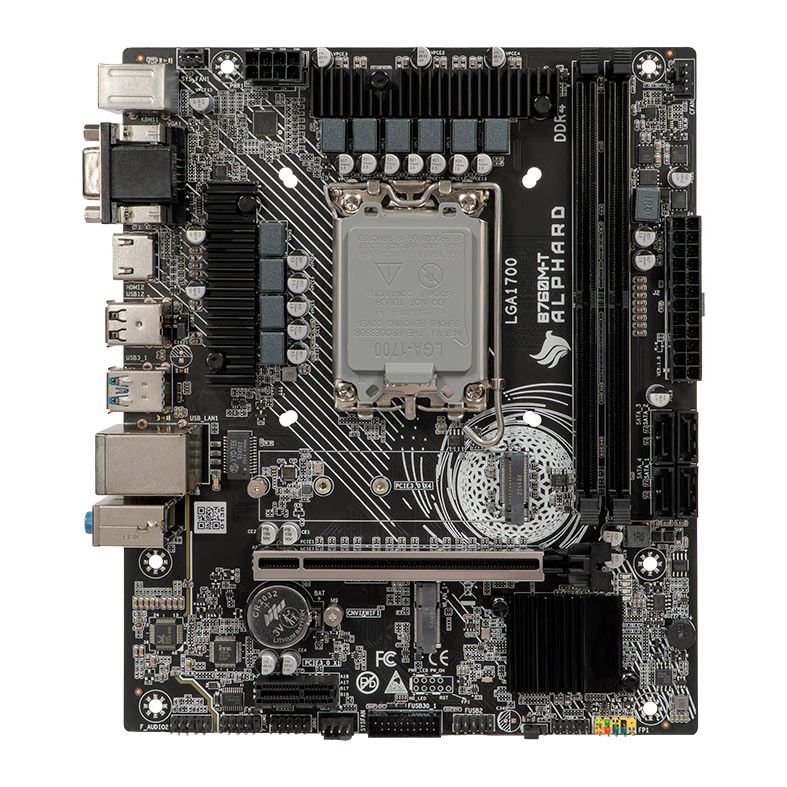

PICHAU ALPHARD B760M-T MOTHERBOARD
One of the most important components when building your gaming PC is the motherboard! Meet the Pichau Alphard B760M-T, designed with all the essential features needed to deliver reliable performance. Built with carefully selected high-quality components, it provides a solid foundation to make your gaming experience even better!
FORM FACTOR
Featuring an M-ATX form factor, you will have no trouble finding a compatible case, as its compact size allows it to fit a wide variety of case types, models, and sizes. This makes building your setup much easier and more flexible!
RELIABILITY
The Alphard B760M-T supports Intel Core 12th, 13th, and 14th Generation i9, i7, i5, i3, and Pentium processors on the LGA 1700 socket platform. Another advantage offered by the Pichau Alphard B760M-T is its efficient power delivery system, which helps extend the lifespan of connected components by providing a stable and clean power supply. Built with high-quality materials, it delivers the ideal foundation for reliable and consistent performance.
PERFORMANCE
Designed to deliver the best possible performance, the Alphard B760M-T features an impressive M.2 slot—an essential feature for users who value speed and responsiveness in their gaming sessions. In addition, it includes two memory slots with support for up to 64GB of RAM, providing the capacity needed for demanding applications and smooth multitasking.
Chipset
Intel® B760
Memory Support
2 x Dual-Channel DDR4 DIMM Sockets with Support for up to 64 GB
Supports DDR4 Memory Modules up to 3200 MHz
Audio
Realtek® ALC897
Storage
1 x M.2 NVMe Slot
4 x SATA 3.0 6Gb/s Ports
LAN
1 Gigabit Realtek Ethernet
