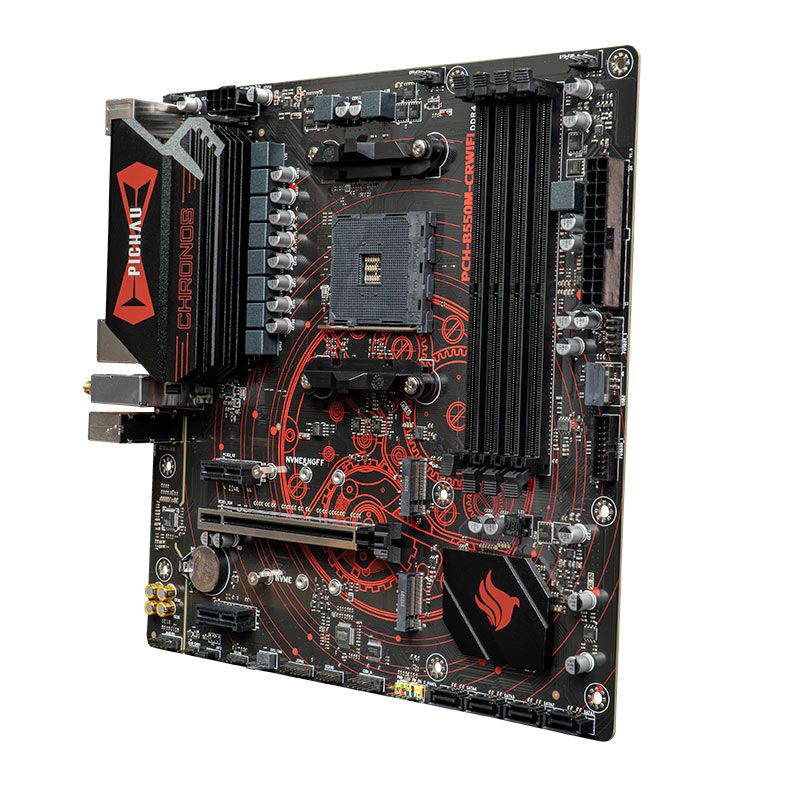

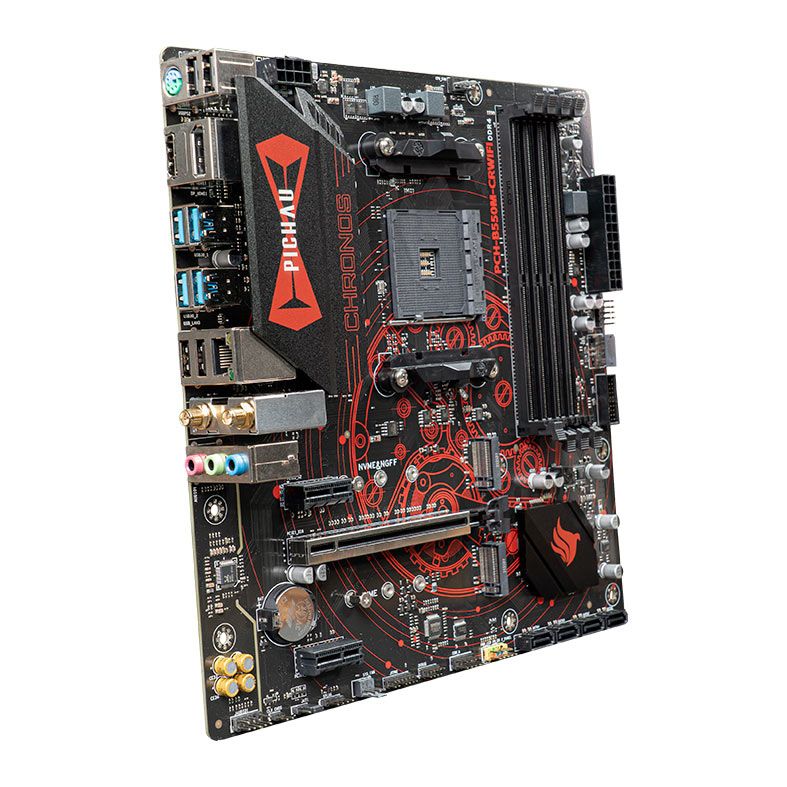

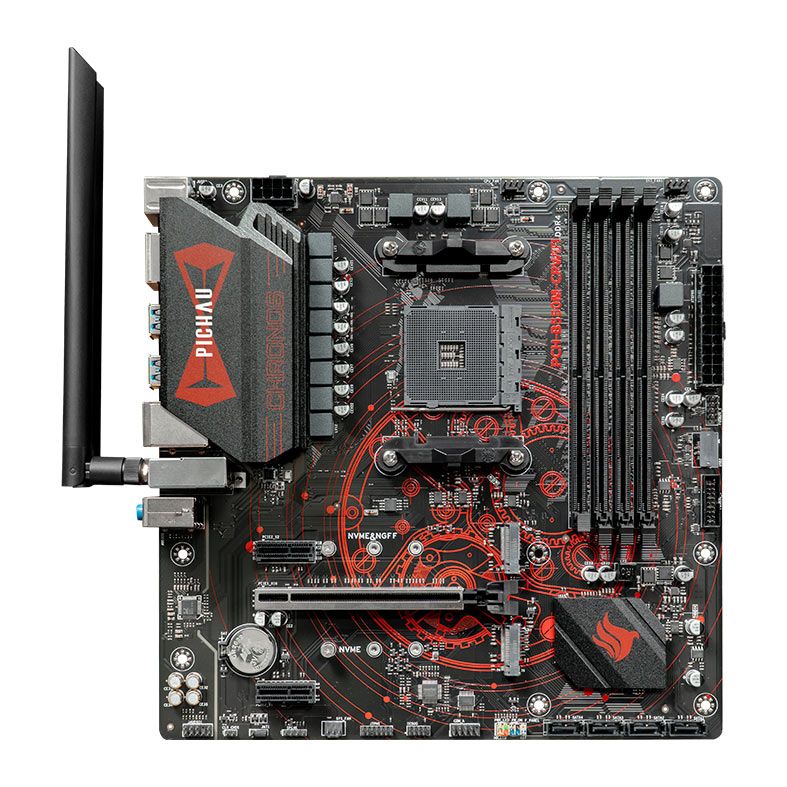

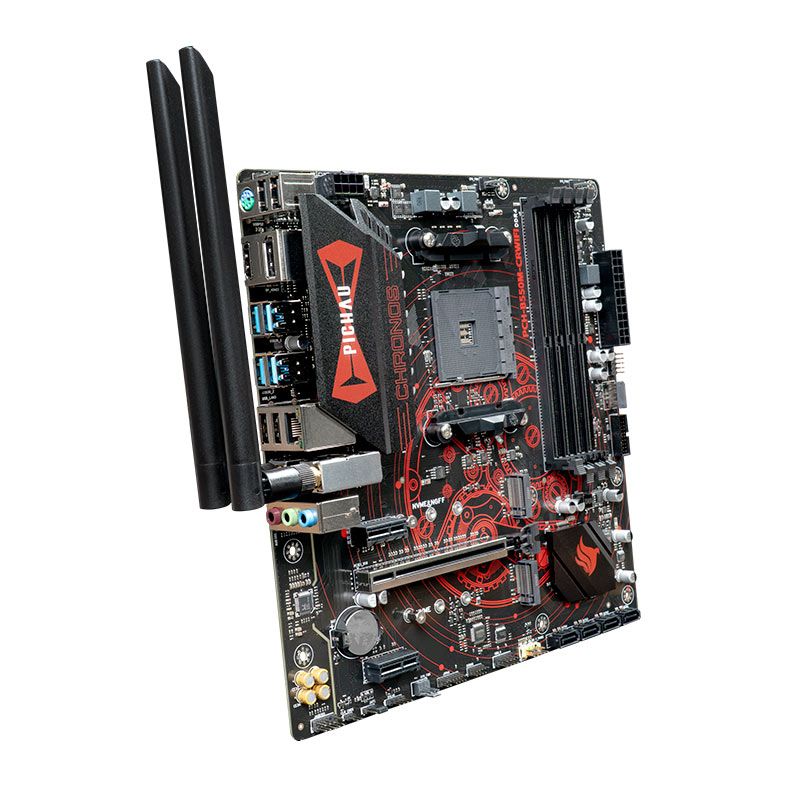

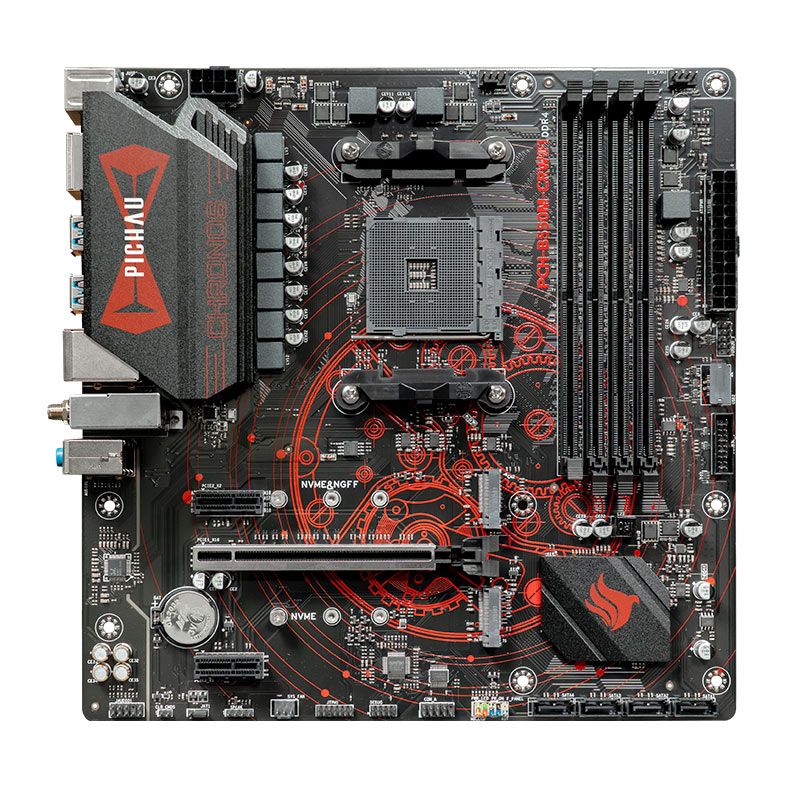

Pichau Chronos B550M-CR WiFi Motherboard, DDR4, AMD AM4 Socket, M-ATX, AMD B550 Chipset

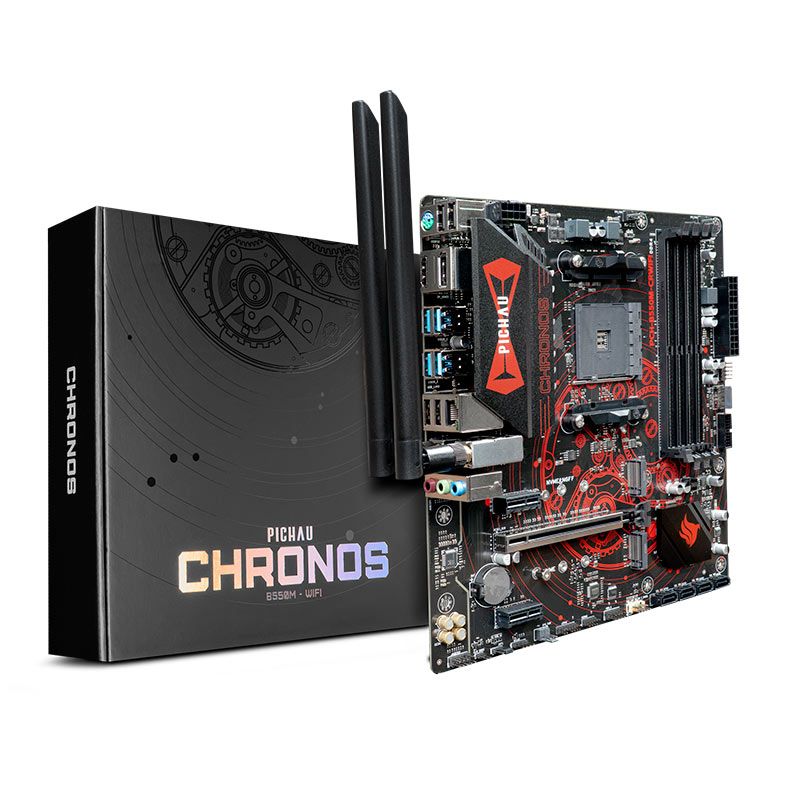

Motherboard | SATA Cable | Rear I/O Shield | M.2 Screw | User Manual
| Brand: | Pichau |
|---|---|
| Model: | PCH-B550M-CRWIFI |
| Motherboard Chipset: | B550 |
| CPU: | Compatible with AMD Ryzen 3000 / 4000 / 5000 Series Processors |
| Memory: | 4 DDR4 DIMM Slots, up to 3200 MHz with XMP Support |
| Maximum Memory Support: | 64 GB (2 or 4 Modules) |
| Storage: | 2x M.2 Slots CN2 Slot: Supports NVMe PCIe 4.0 x4 and SATA 3.0 SSDs (Automatic Switching) CN3 Slot: Supports NVMe PCIe 3.0 x4 SSDs 4x SATA 6Gb/s Ports |
| Video Outputs: | 1 x HDMI 2.0 1 x DisplayPort |
| Network: | 1x RJ45 (Gigabit) |
| Network Chip: | Realtek Gigabit + Wi-Fi Interface (PCIe Support) |
| PCIe Slots: | 1 x PCIe 4.0 x16 2 x PCIe x1 |
| Audio: | 1x Audio Output (Line Out) 1x Microphone Input (MIC In) 1x Line Input (Line In) 1x F_Audio Connector for Front Panel |
| Audio Chip: | Realtek HD |
| USB: | Rear I/O: 4 x USB 3.0, 4 x USB 2.0 Internal Header: 1 USB 2.0 Type-E Header (2 Additional USB 2.0 Ports) 1 USB 3.0 Header (Expandable to 2 USB 3.0 Ports) |
| Internal Connectors: | 1 x Front Panel Connector (FPANEL) 1 x Buzzer Connector (4-pin) 1 x CPU Fan Connector (4-pin – CPU Fan) 1 x System Fan Connector (4-pin – SYS Fan) 1 x System Fan Connector (3-pin – SYS Fan) |
| Power Input: | 24-pin ATX Connector + 8-pin Connector |
| Motherboard Form Factor: | M-ATX, 245 x 245 mm, 6 Layers (6L) |
Pichau Chronos B550M-CR WiFi Motherboard
The Pichau Chronos B550M-CR WiFi is a motherboard that takes the concept of time and performance to the limit. Inspired by Chronos, the god of time in Greek mythology, it is designed for those who understand that every second counts, whether in the most intense gaming sessions or everyday tasks. Ready to support AMD Ryzen processors, it delivers stability and intelligent expandability, ensuring your system is always prepared for the future!
FORM FACTOR
With its M-ATX form factor, it is compact enough to fit into smaller cases while still offering extensive expansion capabilities and upgrade potential over time. It features two M.2 slots for high-speed SSDs and four DDR4 memory slots. Ideal for those seeking a versatile configuration, ready to handle whatever you need, whether for gaming, content creation, or multitasking.
PERFORMANCE
Take your performance to the next level with the Pichau Chronos B550M-CR! Compatible with AMD Ryzen 3000 to 5000 Series processors and supporting up to 64 GB of DDR4 memory in dual- or quad-slot configurations, it delivers a smooth experience with maximum stability. Its two M.2 slots, featuring NVMe PCIe 4.0 support, provide ultra-fast storage to run your applications and games with outstanding performance.
CONNECTIVITY
Designed for practical and efficient use, the Pichau Chronos comes with integrated Wi-Fi, USB 3.0 and 2.0 ports, and a Gigabit Ethernet port, providing fast connectivity for all your needs. HDMI 2.0 and DisplayPort outputs support multiple monitors, while PCIe slots offer room for future upgrades whenever you need more performance. All of this is complemented by Realtek HD Audio, delivering an immersive experience for gaming and multimedia content.
Chipset
AMD B550
Memory Support
4 DDR4 DIMM Slots, up to 3200 MHz with XMP Support
64 GB (2 or 4 Modules)
USB
Rear I/O: 4 × USB 3.0, 4 × USB 2.0
Internal Header: 1 USB 2.0 Type-E Header (2 Additional USB 2.0 Ports)
1 USB 3.0 Header (Expandable to 2 USB 3.0 Ports)
Storage
4x SATA 3.0 Ports
2x M.2 2280 / 2260 / 2242 Slots
(Compatible with NVMe and NGFF Modes)
Audio
1x Audio Output (Line Out)
1x Microphone Input (MIC In)
1x Line Input (Line In)
1x F_Audio Connector for Front Panel
LAN
1x RJ45 (Gigabit)
Realtek Gigabit + Wi-Fi Interface (PCIe Support)
