Pichau Voyager One Gaming Case, Full Tower, Tempered Glass Side Panel, With 1 Front Panel, Black
COLOR
Pichau Voyager One Gaming Case | Installation Guide | Screw Kit for Installation
| Brand: | Pichau |
|---|---|
| Model: | PG-VY1-BK |
| Material: | SPCC 0.8 mm |
| Supported Motherboard: | M-ITX, M-ATX, ATX, E-ATX (With Fans Mounted on the Front) |
| Ports: | 2 x USB 3.0 1 x Type-C HD Audio Brightness Control LED Speed Control |
| HDD/SSD Support: | 2 x 3.5″ HDD + 2 x 2.5″ SSD / 4 x 2.5″ SSD |
| Expansion Slots: | 7 Slots |
| Supported Fans: | Side or Front (Articulated): 3 x 120mm Top: 3 x 120mm or 2 x 140mm Rear: 1 x 120mm or 1 x 140mm Bottom: 3 x 120mm |
| Supported Water Cooler: | Side or Front (Articulated): 240/360mm Top: 240/280/360mm Rear: 120mm |
| Maximum CPU Cooler Height: | 185 mm |
| Maximum GPU Length: | 410 mm |
| Dimensions: | Width: 240mm Height: 480 mm Length: 460 mm |
| Controller: | Dimensions: 141x30mm Material: Plastic Transmission Method: Remote Control, RF Power Input Connector: SATA Output Ports: 10 Output Type: ARGB 5V 3Pin + PWM 4 Pin Connection Interface: SATA Voltage: 12V+5V |
To dream and to build — two deeply human virtues that connect us to our essence and soul. Every detail of the Voyager was carefully designed with passion and dedication by a team of dreamers who invested their time, effort, and imagination into this truly unique project.
The name Voyager One was chosen as a tribute to one of the first space probes to leave Earth and explore our solar system, and just like that probe, the Voyager is our first major launch, created to explore new horizons and push beyond limits.
The gold-plated copper disc and the diamond-tipped needle used to read it were made from materials resistant to the harsh conditions of the cosmos.
Pulsar map, showing the location of our sun within the galaxy.
Representation of the frequency used to reconstruct the images from the signals recorded on the disc.
First encoded image on the disc, which appears when it is played correctly.
Image representing the hyperfine transition of neutral atomic hydrogen, used to establish a unit of time and distance.

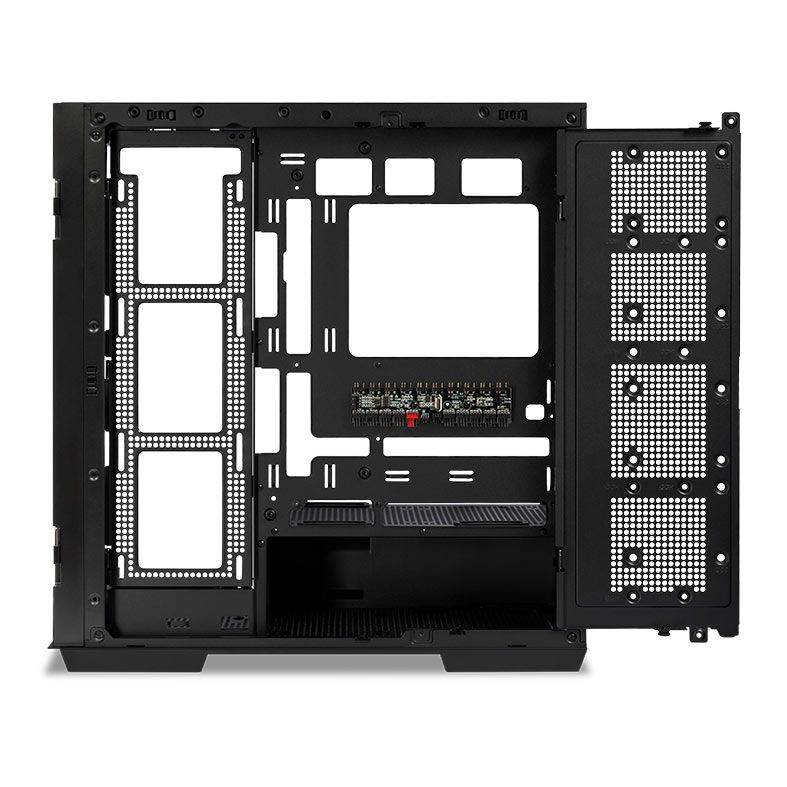

Internal Space
The Voyager is a Full Tower case with a spacious interior, capable of accommodating virtually any configuration. It supports graphics cards over 40cm in length, E-ATX motherboards, power supplies up to 1500W, and even 360mm water coolers with push-pull configurations.

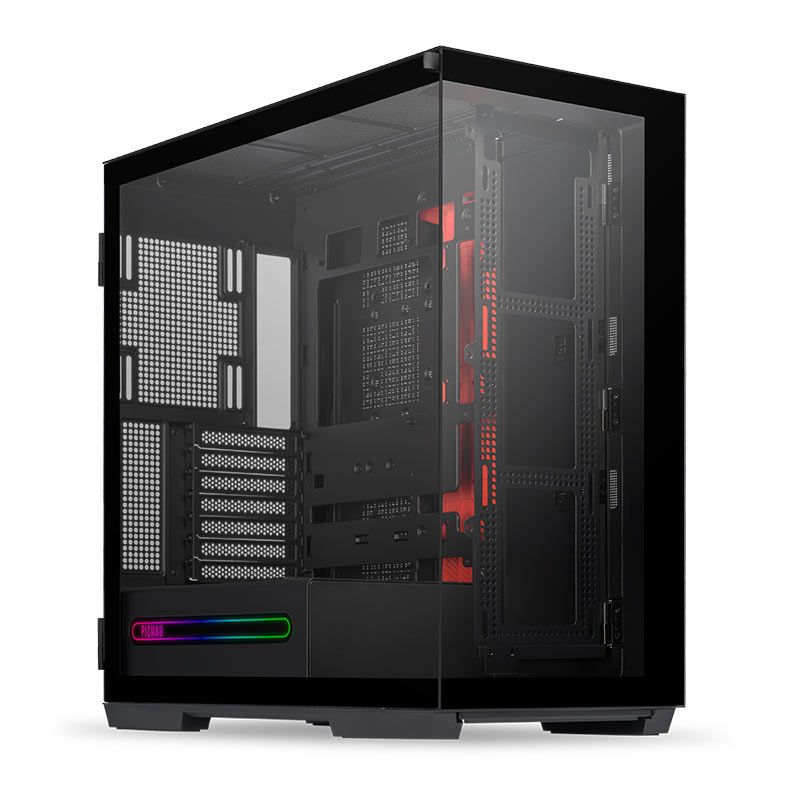

Wide View
With the user’s satisfaction in mind when admiring their assembled PC, we removed one of the columns so they can fully appreciate the beauty of their machine without obstructions. In addition, we added a hinged front panel to ensure this wide view remains whether the case is open or closed.
100% Original Design
The Voyager was entirely conceived, designed, drawn, and developed by Pichau — a completely original in-house project.
LCL 1.0 (LED Control Lever)
The LED control levers are a technology developed by Pichau primarily to allow users to easily control the speed of the lighting effects and the LED intensity, while also creating a stronger connection between the product and the user.
AFT 1.0 (Adjustable Fan Tray)
We implemented this simple yet effective technology, allowing users to choose whether they prefer the front fan tray mounted on the side or at the front of the case. This provides greater flexibility, enabling users to adjust airflow according to the needs of their configuration.
Support for Rear-Connector Motherboards
Want the best possible cable management? No problem — the Voyager supports rear-connector motherboards, including both ATX and M-ATX models.

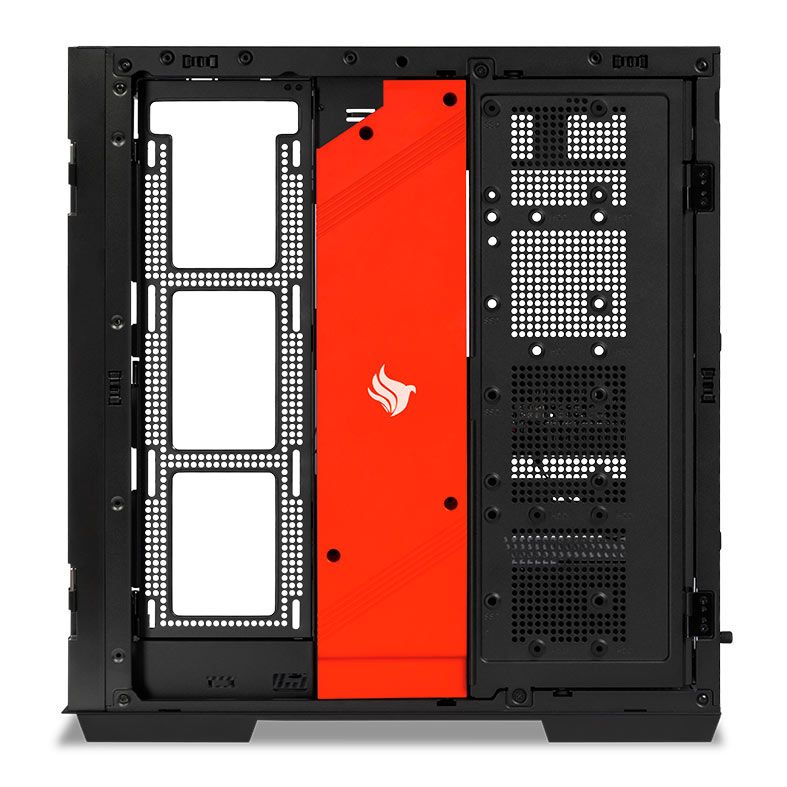

Organized Cables Front and Back
With its spacious interior, the Voyager allows you to achieve excellent cable management, so your setup looks as stunning as you’ve always dreamed. And for those who don’t want cables showing even at the back of the case, don’t worry — it also includes a cover to hide all the cables, keeping your configuration clean no matter where you look.
Reinforced Structure
Focused on providing greater durability and reducing the risk of damage to the product, we designed a “C”-shaped structural reinforcement that prevents the top part of the case from bending.
Choose Your GPU Position
The Voyager supports both horizontal and vertical GPU mounting — build it your way!
